Electronic 50kN Cable Wire Tensile And Elongation Test Machine

FOB Reference Price:Get Latest Price
$4,000.00 - $9,000.00 / Set | 1 Set/Sets (Min. Order)
Usage:
Tensile Testing Machine
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
RIGHT
Model Number:
RT-205
Power:
Electronic
product name:
Tensile And Elongation Test Machine
Max load:
5,10,20 ton
Accurate grade:
1 % /0.5 %
application:
rubber,shoes,yard,etc
Effective Tensile stroke:
800mm;1000mm;1200mm or customize
Range of testing speed:
0~500mm/min
Units:
Kg,Lb,N,Ton (can be exchanged)
Resolution:
1 / 50000
Measuring accuracy:
Display the value ±1%/Display the value±0.5%
Motor:
AC motor
Supply Ability
Supply Ability:
200 Set/Sets per Month 10 Ton Dia Gauge Instron Universal Testing Machine
Packaging & Delivery
Packaging Details
Electronic 50kN Cable Wire Tensile And Elongation Test Machine is packed in a polybag, then packed as export safety wooden case
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

Electronic 50kN Cable Wire Tensile And Elongation Test Machine


Product Description

What Specification Of Universal Testing Machine?





Name

Electronic 50kN Cable Wire Tensile And Elongation Test Machine

Maximum load

5,10,20 ton

Accurate grade

1 grade /0.5 grade

Effective measuring range

0.2%~100%(1 grade)/0.4%~100%(0.5 grade)

Measuring accuracy

Display the value ±1%/Display the value±0.5%

Tester resolution

Max load 1/200000,constant the resolution

Load sensor

Basic configuration:sensor(max load): one

Extended configuration:can add more sensors

Effective testing width

400mm(can be widened according to customer’s requirement )

Effective tensile stroke

1000mm;1200mm;1400mm (can be increased the height

 according to customer’s requirement)

Range of testing speed

0.001~100mm/min

Accuracy of displacement measurement

Tolerance: ±0.5%/ tolerance: ±0.2%

Deformation of measured system

(according to the requirements)

Min span :10mm,Max range of deformation800mm

Extended deformationMin span: 25mm,50mm,100mm,range of

 deformation :5mm,10mm,25mm

Accuracy of measured deformation

Tolerance :±0.5% (according to requirement of customer to choose

 the larger or small deformation)

safety

Electronic-limit protection

Testing platform moving  device

Fast /slow  two speeds to control,can jog

Back to function of testing platform

Manual or automatic operation,After the test, the moving iron

return to initial position with the highest speed by manual or

automatic operation

Overload protection

Overload 10%,automatic protection

fixture

A set of tensile fixture

Machine size

107*56*210cm(length*width*height)

Motor

Panasonic AC servo motor and drive

power

220V,50HZ,

power

0.75KW(depending on different demand of force, using different

motor)

weight

(about)320 KG

Unit

KG,N,LB, TON can be exchanged.



Equipment summary:

Electronic 50kN Cable Wire Tensile And Elongation Test Machineis a new material testing machine that combined with the electronic technology and mechanical transmission

, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load,

displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for

 controlling quality in production line, This series of machine is mainly applied to test the non-metallic and

 metallic materials which the load is less than 10ton.



Main function:

Mainly applied to test the metallic and non-metallic materials in tension, compression, bending, shear, peel,

 tear or two-points extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable,

safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles,

spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip,

non-ferrous metal wire



Main feature:

Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip

 microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic

calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus,

automated statistical results; automatically recorded the biggest point, breaking point, the designated point

 value or the rate of elongation; Using computer to display the dynamic curves in the testing process and

process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the

graphics processing module, printing reports, product performance reached the international advanced level.



Corresponding standard :

<GB/T16491-1996  electronic universal testing machine>



Applicable industry:

China Manufacturer Price Lab 10 Ton Dia Gauge Instron Universal Testing Machine  is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing

machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials

and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.



Why Choose Us?

details

Product Show

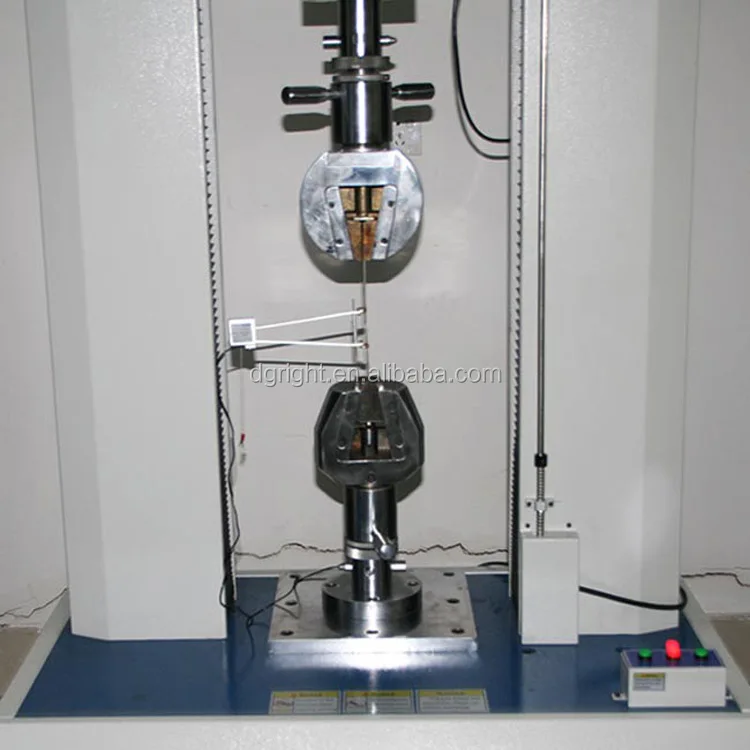

 wire tensile testing machine

tensile-curve750

wire tensile testing machine

 wire tensile strength test equipment, 50kn universal testing machine.jpg

 wire tensile testing machinebolt tensile testing machine
Customer Feedback



Customer Feedback



Packaging & Shipping

.jpg



*Shippment

-By sea

-By plane

-By couriers, TNT, DHL, FEDEX, UPS, etc.



*Standard Export carton

1.Inner Package: Thin plastic film surround the machine;
2.Outer Package: Internationally standard package export safety wooden case.

Related Product

Company Information

Dongguan Right Testing Machine Co.,Ltd is specialize in rubber and plastic testing machine over 10 years,With our advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.



Our production line have turning machine,griding machine,milling machine,CNC machining center and sheet metal bending machine,design department has 5 people special for design and research new product.With these advantages,we can control product quality from source.



If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.





.jpg


.jpg

Product Category

FAQ

FAQ

Q1: How long is the delivery time?
 A: 5 working days after we received your deposit or order confirmed.


Q2: What is the warranty for the equipment?
 A: One year. We can provide you lifelong technical support.


Q3: What is the payment terms?
 A: T/T, L/C, Western Union, etc


Q4: How about the products quality?
 A: Our products apply to ISO, ASTM, GB, etc



Q5: Is it OK to print my logo on machine product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q6. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

     or 100% L/C at sight .



Q7: Can we test sample before place order?

A: Of course,we can test sample and provide test report to you with free.
